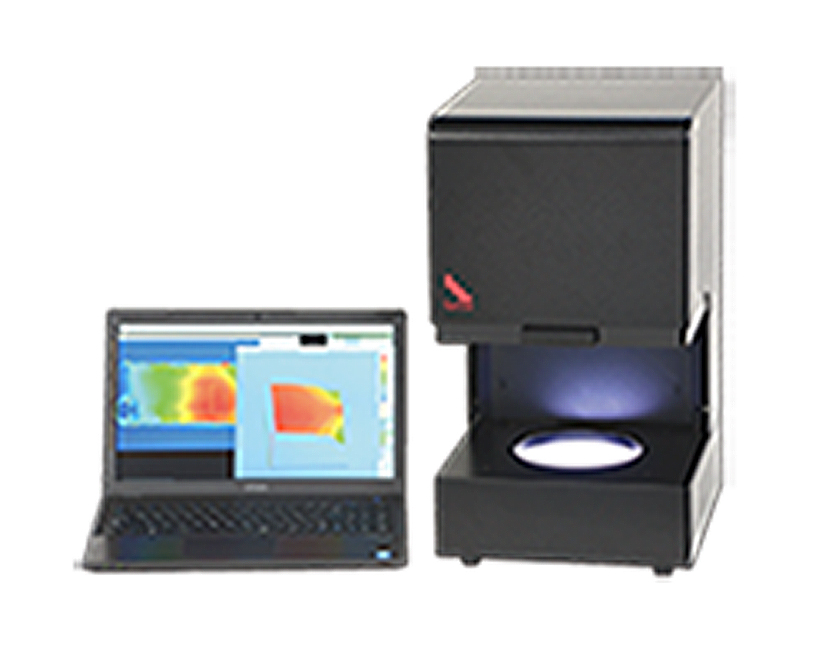

Near infrared fully automatic strain gauge
LSM-9001 NIR
Fully automatic strain eye

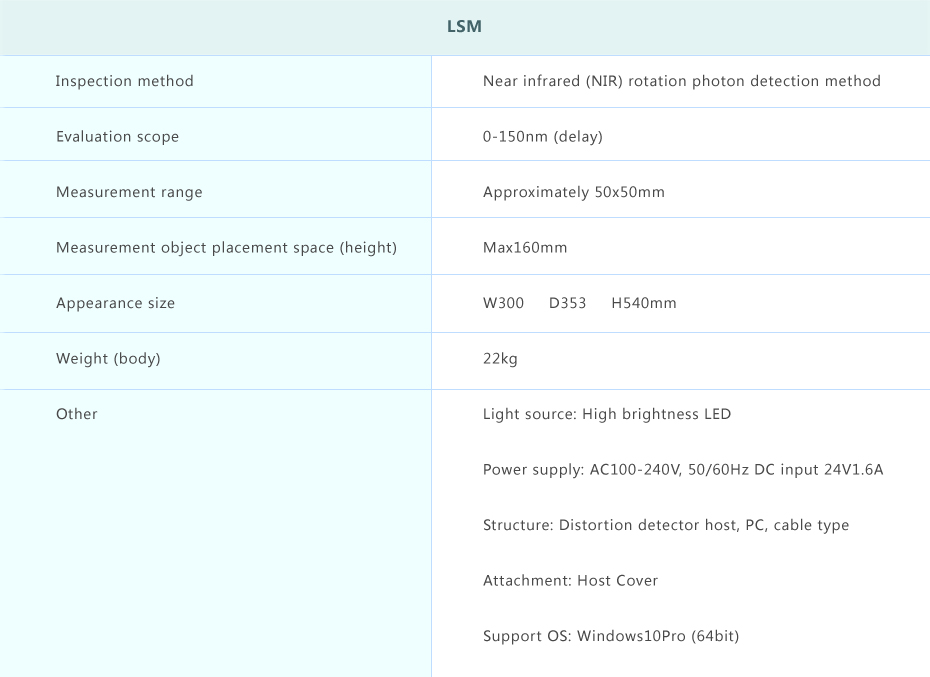

Model number
LSM-9001 NIR
Inspection method
Near infrared (NIR) rotation photon detection method
* Fully automatic measurement is effortless, reducing the measurement error of the measurer.
Simply place the measurement object and click on the measurement button. Fully automatic measurement can be carried out based on the information captured by the built-in camera.
Because the judgment of the tester is not required, there will be no measurement error caused by this.

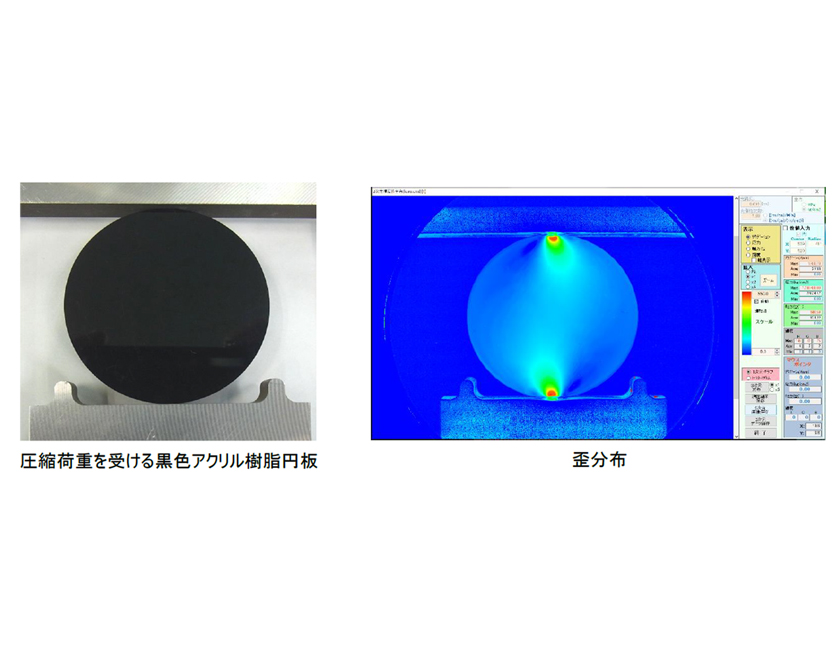

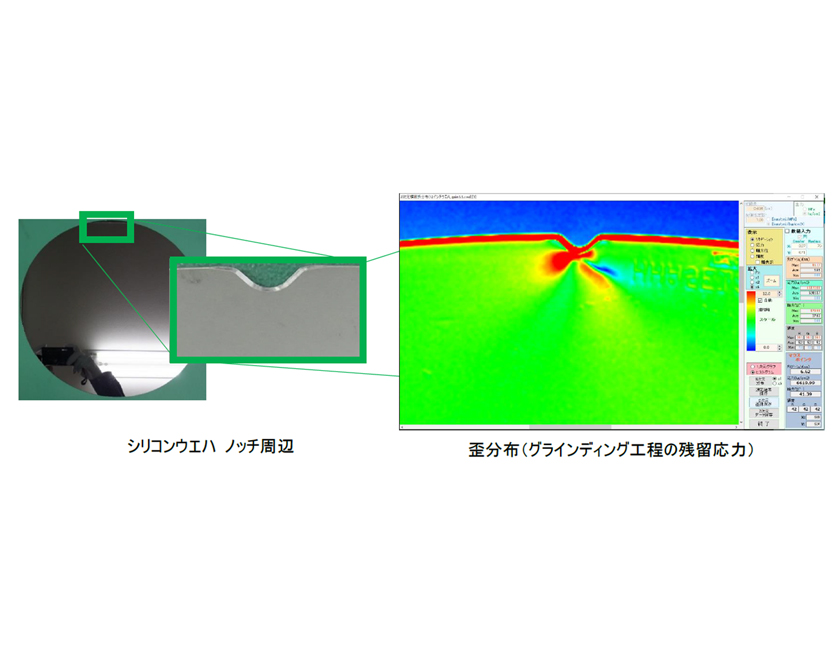

* It can handle the strain inspection, residual stress and crack inspection of colored resin products that cannot be measured by previous strain gauges.
* Software analysis tools
A chart of the cross-section on a two-dimensional distribution map, a histogram of any set area, a three-dimensional display of the two-dimensional distribution map, CSV storage of measurement results, and image storage.
The software includes these functions. Facilitate analysis and evaluation of results.
* Long lifespan and energy saving
The light source adopts high brightness LED. It can reduce maintenance trouble and operating costs related to replacing light sources.
